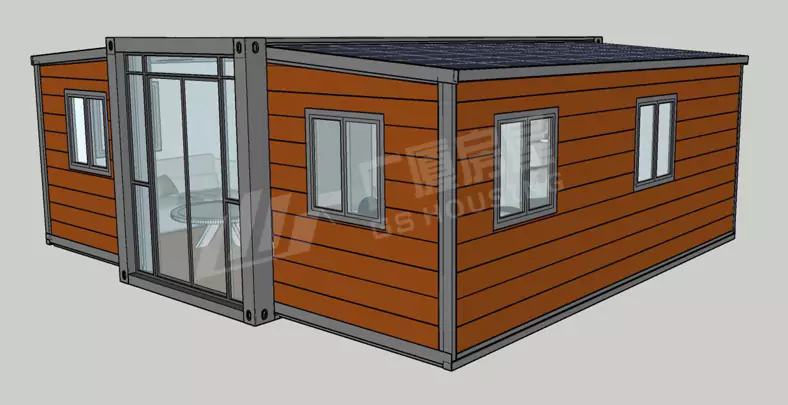

Expandable container houses-20 Feet
- Length: 5900mm
- Width: 6300mm
- Height: 2480mm
- Area: 37.2㎡
- Type: Two-Bedroom Suite
Application & Advantages

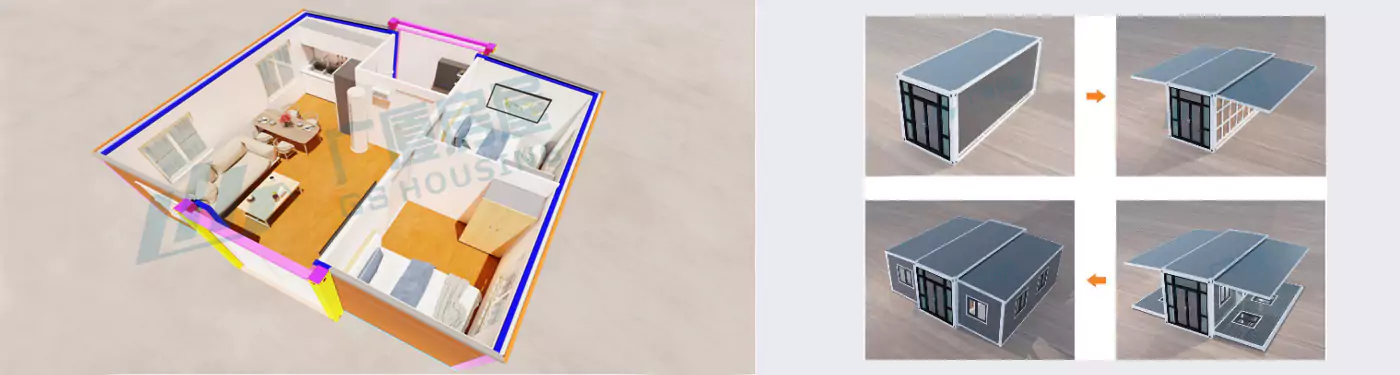

The expandable folding structure makes its appearance and spatial layout unique. The expanded folding structure increases the available space inside the house, creating a larger living space. It can be quickly assembled and disassembled, making it easy to move to different places. Whether it is outdoor adventure, camping or home emergency rescue, the expandable folding container house can provide convenient living solutions.
Specifications
| NO. | NAME | SPECIFICATION | |

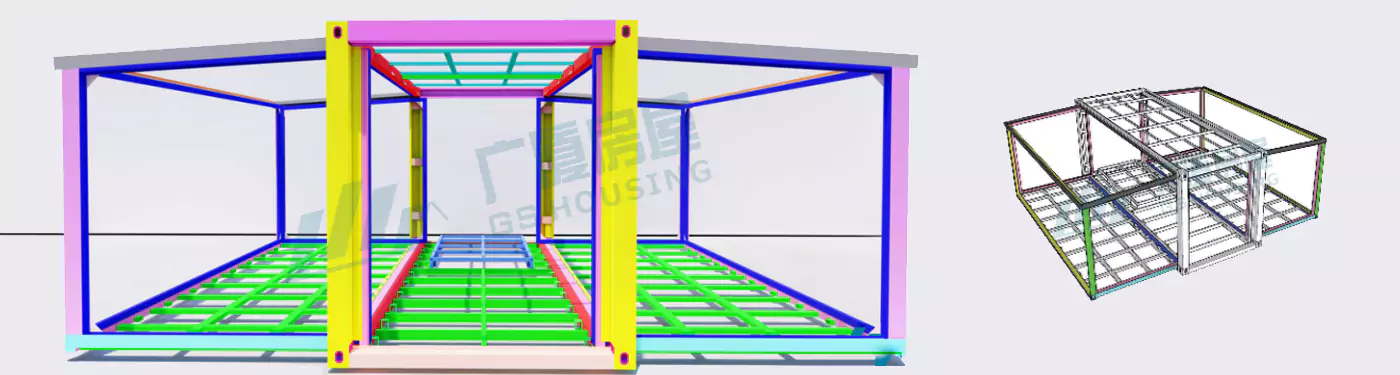

| 1 | Main frame (fully galvanized) |
Top side beam | 80*100*2.5mm Square tube |
| Top beam | 140*140*2.5mm Square tube | ||
| Bottom side beam | 140*100*2.5mm Square tube | ||
| Bottom beam | 140*80*1.5mm Square tube | ||
| 6mm Galvanized hanging head | Galvanized hanging head 210*150*160(mm) | ||
| Steel column | 210*150*2.5mm Square tube | ||
| 2 | Side frame (fully galvanized) |
Top frame | 40*80*1.5mm P shaped tube |
| 40*80*1.5mm shaped tube | |||
| Bottom farm | 60*80*2.0mm shaped tube | ||
| Bottom hinge | 130 mm Galvanized hinge | ||
| 3 | Wallboard | Side walls\ front and rear\Inner partition board | 1150 Type – 50mm thick double-sided 0.35mm EPS color steel sandwich panel |
| 4 | Ground | Center floor | 18mm thick cement fiberboard + 1.6mm PVC flooring |
| Floor on both sides | 18mm thick bamboo plywood + 1.6mm PVC flooring | ||
| 5 | Door and Windows | Plastic steel sliding window | 800*900mm 4mm+9A+4mm Double glazing |
| Steel single door | 1360*2035mm |

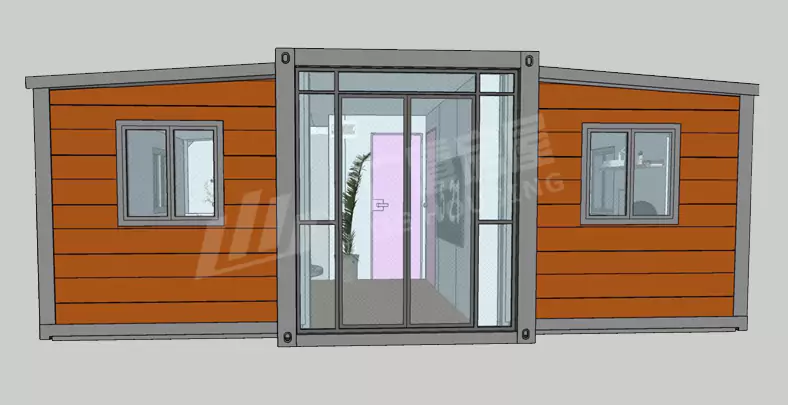

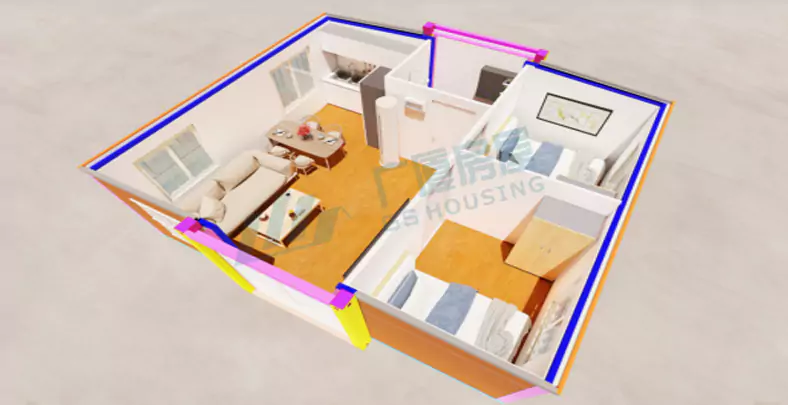

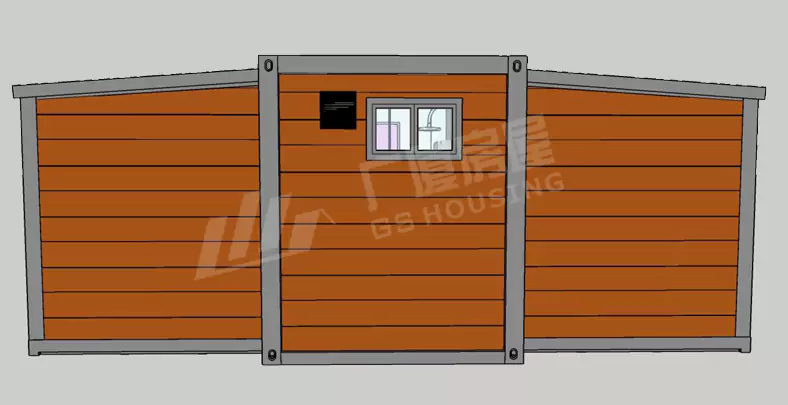

Design Drawings

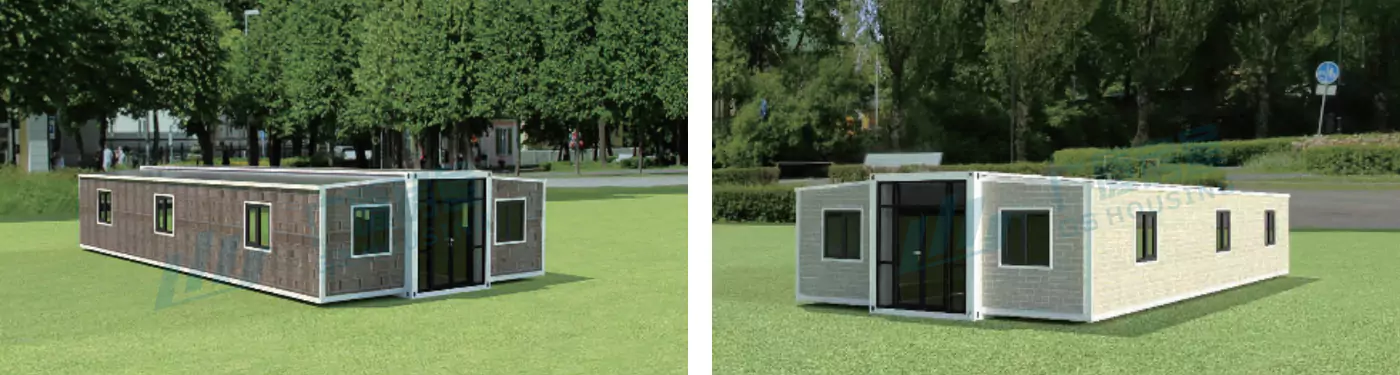

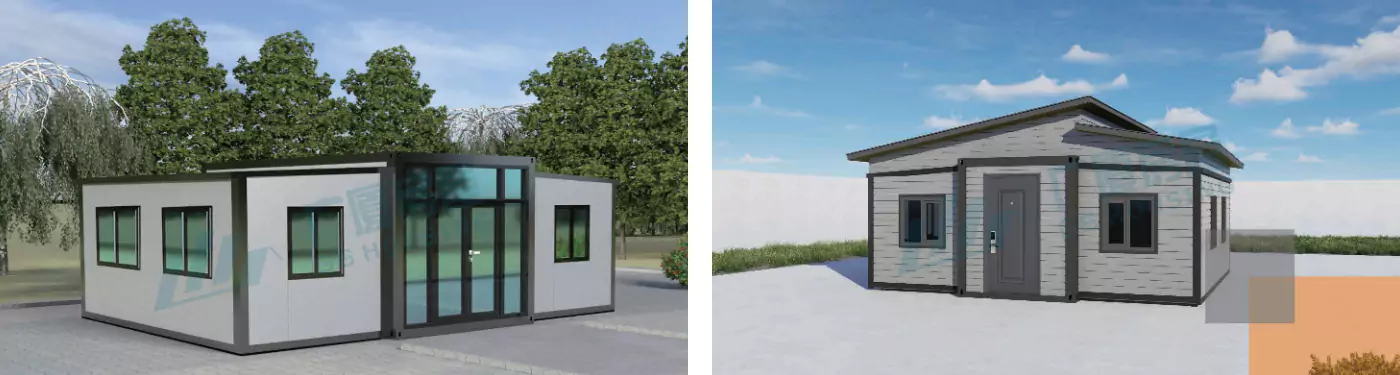

Available in various colors and styles, customizable! Can be designed as a one-bedroom with two living rooms or a two-bedroom with two living rooms.
